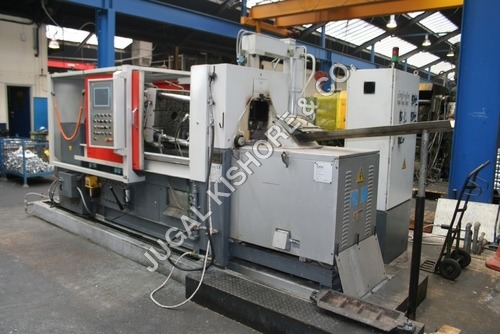

IDRA 90 TON HOT CHAMBER DIE CASTING MACHINE

IDRA 90 TON HOT CHAMBER DIE CASTING MACHINE
IDRA 90 TON HOT CHAMBER DIE CASTING MACHINE
Send Inquiry
Product Code : 01
Product Description

Hot Chamber Die Casting Machine



We have successfully achieved a high level of customer appreciation resulting in long-lasting relations by offering products that are high in quality. We purchase all of our products directly from their origin places to provide excellence in both quality and price. All of our machinery including IDRA 90 Ton Hot Chamber Pressure Die Casting Machine offered is precision engineered to provide high operational benefits to the user entities.



Description:

Machine Type: Hot Chamber Die Casting  Machine

Machine Make: IDRA

Machine Model: 90 Ton



Features:

Easy Installation, Pocket friendly prices, Minimum Maintenance



Technical Specification:

Clamping force

KN

900

Injection force

KN

65

Ejection force

KN

50

Max. die height

mm

350

Min. die height

mm

150

Platen size (HxV)

mm

535x535

Distance between tie bars

mm

357x357

Moving platen stroke

mm

280

Central ejection stroke

mm

60

Injection stroke

mm

130

Goosneck diameter

mm

45-50-55

Max. casting weight

Kg

1-1,26-1,53

Casting pressure

MPA

42-34-28,1

Casting area

cm2

214-264-320

Injection positions

mm

0-60

Hydraulic working pressure

MPA

10,5

Nozzle heating power

KW

2

Furnace capacity (Zn)

dm3(kg)

50(330)

Furnace power

KW

30

Dry cycles

n/1

12

Max pump motor power

KW

25

Working pump motor power

KW

12,7

Machine weight

Kg

4000

Machine dimensions (LxWxH)

m

4-1,5-1,99







Buy used IDRA 90 Ton Hot Chamber Die Casting Machine in very good working condition at a very competitive price.
