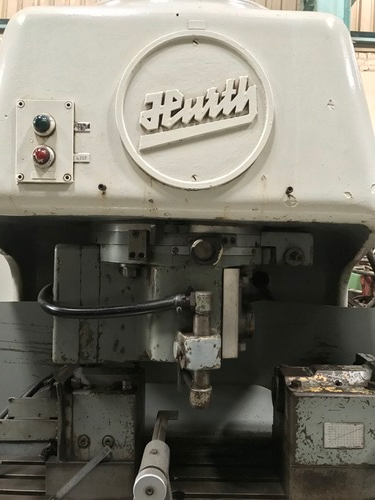

GEAR SHAVING MACHINE HURTH ZSA 550

GEAR SHAVING MACHINE HURTH ZSA 550

Product Details:

X

Product Description

Gear Shaving Machine Hurth ZSA550



We  have successfully  achieved a high level of customer appreciation resulting in long-lasting relations by offering products that are high in quality. We purchase all of our products directly from their origin places to provide excellence in both quality and price. All of our machinery  including Gear Shaving Machine Hurth ZSA 550 offered is precision engineered to provide high operational  benefits to the user entities.



Description:

Machine  Type: Gear  Shaving Machine

Machine  Make: Hurth

Machine  Model: ZSA 550



Features: Easy Installation, Pocket friendly prices, Minimum Maintenance.



Technical  Specifications:



Work gear O.D.

Mm195 to 550

76 3/4 to 21 3/8

Pitch range

module 1 to 8

25 to 3 D.P

Max. face width (parallel a having)

mm250

9 7/8

Max. table horizontal traverse, power and hand

mm250

9 7/8

Max. table vertical adjustment, by hand

mm180

7 1/8

Swivel range of shaving cutter head

+23


Shaving cutter O.D.

Mm180 to 260

7 1/8 to 10 1/4

Cutter width standard

20 and 25.4

25/32 and 1

Cutter bore diameter

63.5

2 1/2

Speeds and feeds

8 Shaving cutter speeds

rpm 36-45-61-78-98-120-163-200

10 table longitudinal feeds

mm/min 6-8-11-15-23-35-52-75-110-155

.24-.21-.43-.59-.91-1.38-2.05-2.95-4.33-6.10 rpm

Automatic table infeed

Range of incremental table infeed

.2

.008

Infeed increment per table stroke

.02

.0008

Table return at end of shaving cycle

.5

.02

Electric motors

Cutter drive (With friction cone brake)

2.2kw - 3 hp - 1500rpm

Horizontal table feed (with disc brake)

.45kw - .6 hp - 900rpm

Vertical table infeed

.3kw - .4 hp 900 rpm

Coolant pump

.33kw - .44 hp,  2800 rpm

Pump of centralized lubrication system

.045kw - .06kw

Pupm capacity

.2litres (12 cu. in.) per minute

Space requirements (doors closed)

Floors space RL x FB.

mm1650X1450

65x57

Overall height

mm2200

87


Buy used Gear Shaving Machine Hurth ZSA550 in very good working condition at a very competitive price.
