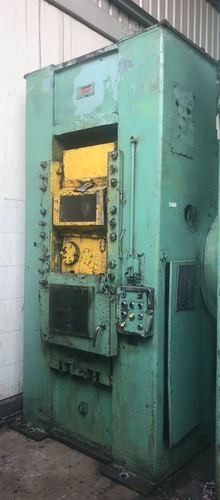

Knuckle Joint Extrusion Press Barnaul K 0036

Knuckle Joint Extrusion Press Barnaul K 0036
Knuckle Joint Extrusion Press Barnaul K 0036
Send Inquiry
Product Code : 01
Product Description

Knuckle Joint Extrusion Press Barnaul K 0036





Product Description:

Machine Type: Knuckle Joint Extrusion Press

Machine Make: Barnaul

Machine Model: K 0036



Features: Easy Installation Pocket friendly prices MinimumMaintenance.



Technical Specifications:

Capacity Of Press

4000 kN

Constant Press Stroke

230 mm

Frequency Of Continuous Press Strokes Per Minute

25

Number Of Single Press Strokes Per Minute

16

Press Stroke Path Till Its Extreme Position,

Where It Develops Capacity Of Press

36 mm

Distance Between Die Bed And Press Slide In Its Lower Position With Up Position Of Adjustment

590 mm

Dimension Of Distance Adjustment Between The Bed And Press Slide

16 mm

Proportions Of Bed:

From Left To Right

From Front To Back



1000 mm

1250 mm

Proportions Of Press Slide:

From Left To Right

From Front To Back



900 mm

940 mm

Thickness Of Die Bed

160 mm

Overhead Ejection Stroke

16 mm

Overhead Ejection Force

160 kN

Inferior Ejection Stroke

140 mm

Inferior Ejection Force

500 kN

Rigidity

3600 kN

Overall Dimensions Of Press:

From Left To Right

From Front To Back

Height



2270 mm

2600 mm

4750 mm

Height Of Press Above The Floor

4400 mm

Mass Of Press Without Base And Electric Equipment

37450 Kgs







Buy used Knuckle Joint Extrusion Press Barnaul K 0036 in very goodworking condition at a very competitive price.
