Product Description

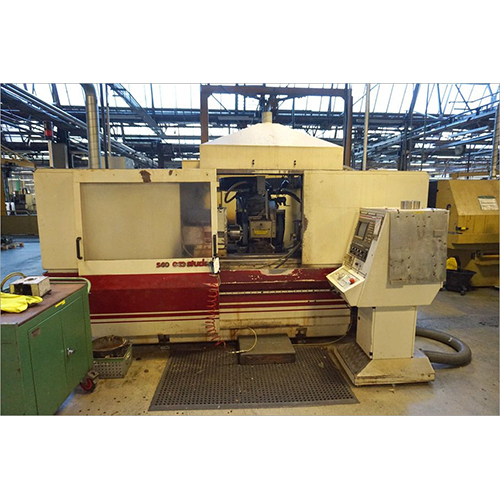

Studer S40-4 Universal Grinder

We have successfully achievedhigh level of customer appreciation resulting in long-lasting relations byoffering products that are high in quality. We purchase all of ourproducts directly from their origin places to provide excellence in bothquality and price. All of our machinery including Studer S40-4Universal Grinder offered is precision engineered to provide highoperational benefits to the user entities.

Product Description:

Machine Type: Universal Grinder

Machine Make: Studer

Machine Model: S40-4

Features: Easy Installation, Pocketfriendly prices, Minimum Maintenance

Technical Specifications:

Distance Between Centers	1000 mm
Centers Height	200 mm
Table Stroke	+ 50 mm
Table Orientation	8.5 Degree
Table Speed	0.06 - 10000 mm/min
Solution	0.001 mm
Programmable Cross Stroke	300 mm
3 Programmable Traverse Speed	0.01 - 5 000 mm/min
Traverse Per Programmable Impulse	0.001 mm
Solution	0.0005 mm
Grinding Wheel Dimensions	400 x 80 x 127 mm
Peripheral Speeds	35 M/Sec
Rotations Number	1670 - 2170 RPM
Part Holder Spindle	CM 5
Orientation	0 - 90 Degree
Speeds	30 - 750 RPM
Maxi Between Centers Weight	100 Kg
Counter Headstock	CM 3
Sleeve Relieve	30 mm
Machine Equipped With	Internal Grinding Unit

Buy used Studer S40-4 Universal Grinder in very good workingcondition at a very competitive price.
